Soldering wires containing X39 flux are especially formulated as a complement to clean wave and reflow soldering operations. It is also suitable for use in post-cleaning repair works without requiring any additional cleaning.
Usage areas:
It is used in R&D studies where precision is required (processor and integrated legs).
X39 Temizlik Gerektirmeyen Kristal Reçine
Standart DIN 8511 FSW 32
Acid Value 215 -230 mg KOH/gr
Halide Content No
Flux rate in the wire 1 % ± 0,2 %
Copper mirror test Pass
Chromate Paper Test Pass
Corrosion test Pass
SIR Surface Permeability Test
Test duration - hour 96
Polarization voltage No
Surface permeation resistance 1.16 x 109
Flux-free control 5.09 x 109

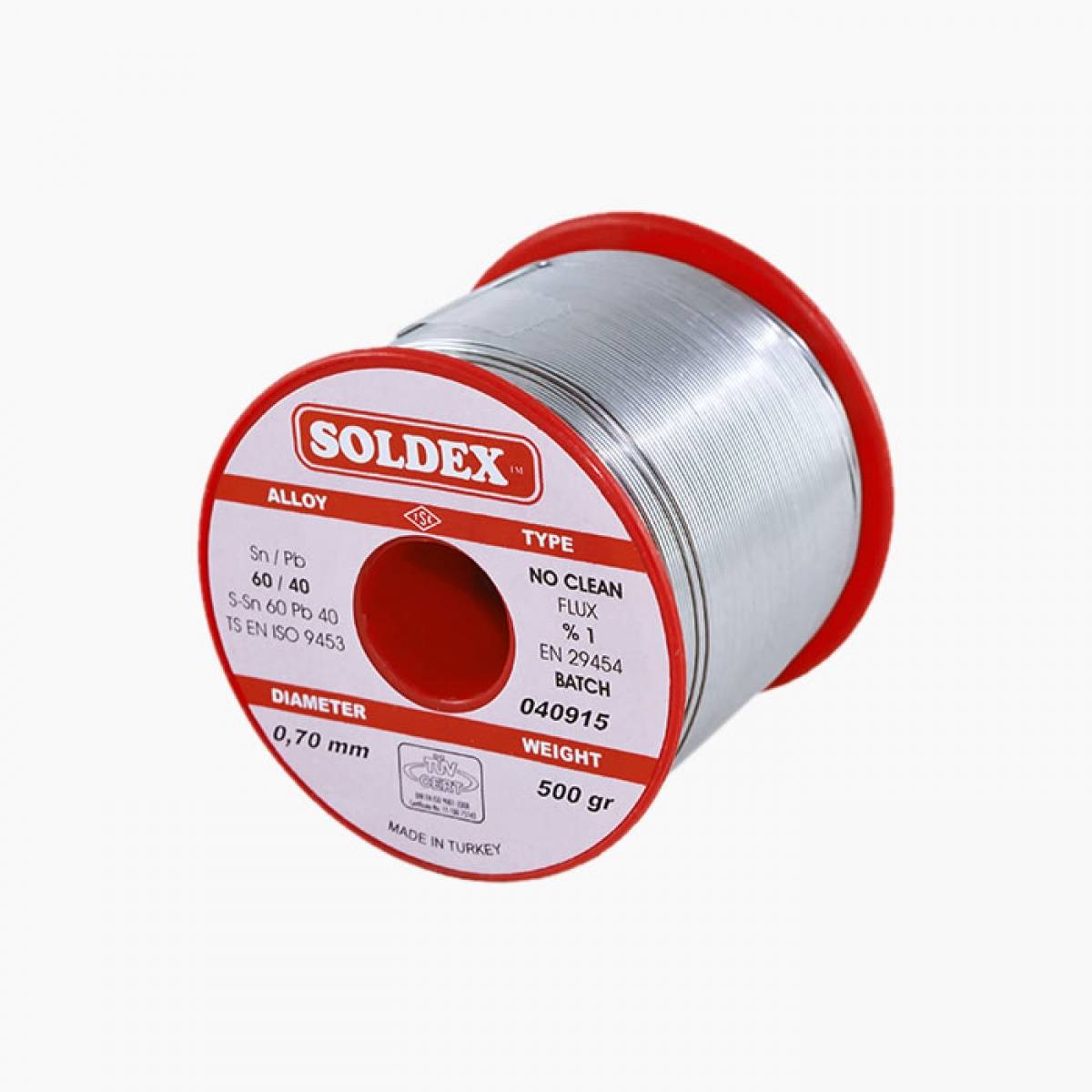

Code Product Name Diameter Packaging
60N075 Sn60 Pb40 Solder Wire 0,70 mm 500 gr
60N105 Sn60 Pb40 Solder Wire 1,00 mm 500 gr
60N125 Sn60 Pb40 Solder Wire 1,20 mm 500 gr
60N165 Sn60 Pb40 Solder Wire 1,60 mm 500 gr
60N205 Sn60 Pb40 Solder Wire 2,00 mm 500 gr
60N235 Sn60 Pb40 Solder Wire 2,30 mm 500 gr
60N052 Sn60 Pb40 Solder Wire 0,50 mm 200 gr
60N072 Sn60 Pb40 Solder Wire 0,70 mm 200 gr
60N102 Sn60 Pb40 Solder Wire 1,00 mm 200 gr
60N122 Sn60 Pb40 Solder Wire 1,20 mm 200 gr
60N162 Sn60 Pb40 Solder Wire 1,60 mm 200 gr
Box Packing Quantity:
500 gr Spool Box Quantity: 20 Pieces / 10 kg
200 gr Spool Box Quantity: 40 Pieces / 8 kg
Your special orders are taken in the desired diameters in the range of 0.50 mm-6.00 mm.
