Usage areas:
It is used in R&D studies where precision is required (processor and integrated legs).
X39 No-Clean Crystal Resin
Soldering wires containing X39 flux are especially formulated as a complement to clean wave and reflow soldering operations. It is also suitable for use in post-cleaning repair works without requiring any additional cleaning.
Standart DIN 8511 FSW 32
Acid Value 215 -230 mg KOH/gr
Halide Content No
Flux rate in the wire 1 % ± 0,2 %
Copper mirror test Pass
Chromate Paper Test Pass
Corrosion test Pass
SIR Surface Permeability Test
Test duration - hour 96
Polarization voltage No
Surface permeation resistance 1.16 x 109
Flux-free control 5.09 x 109

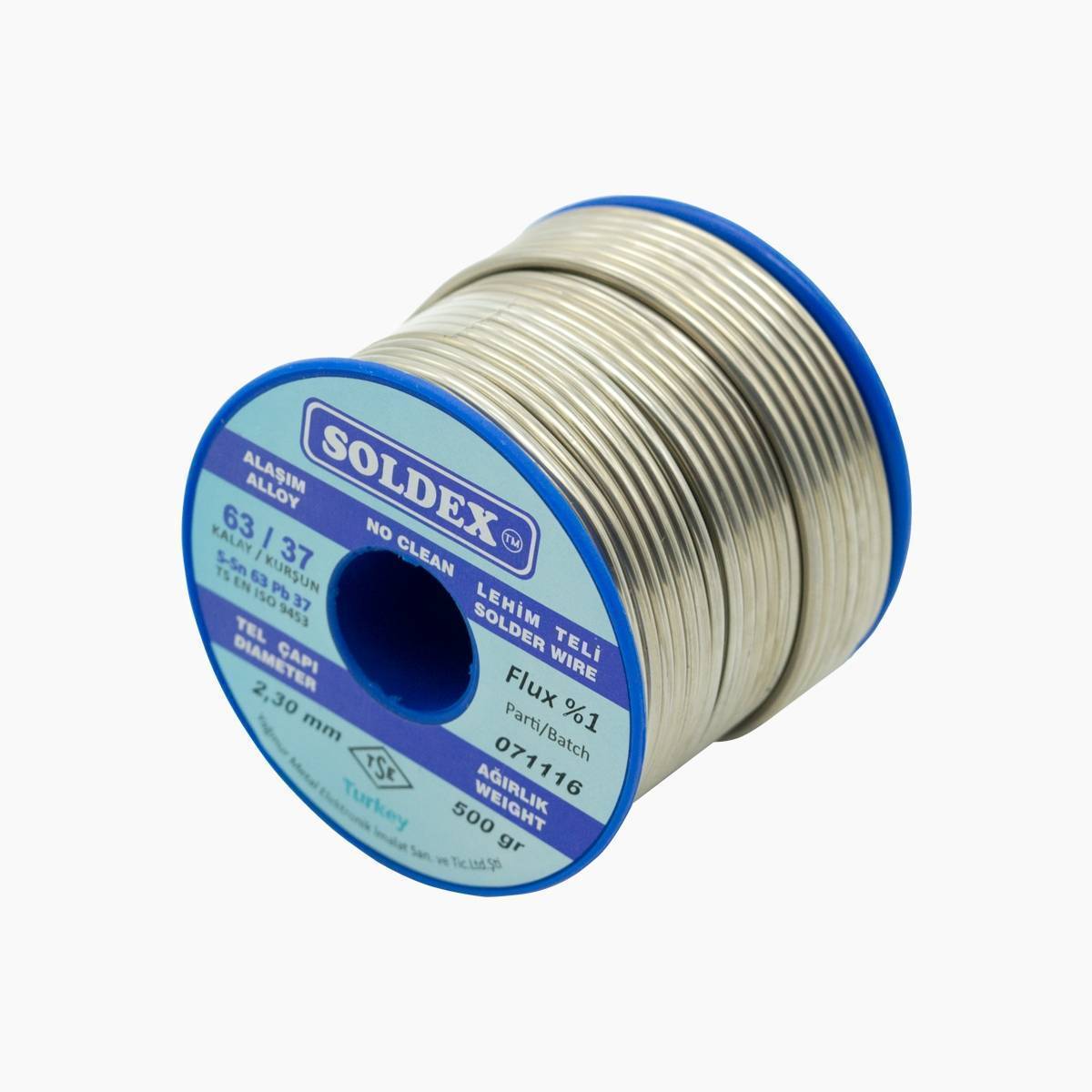

Code Product Name Diameter Packaging
63N075 Sn63 Pb37 No Clean Solder Wire 0,70 mm 20 Piece 500 gr
63N105 Sn63 Pb37 No Clean Solder Wire 1,00 mm 20 Piece 500 gr
63N125 Sn63 Pb37 No Clean Solder Wire 1,20 mm 20 Piece 500 gr
63N165 Sn63 Pb37 No Clean Solder Wire 1,60 mm 20 Piece 500 gr
63N205 Sn63 Pb37 No Clean Solder Wire 2,00 mm 20 Piece 500 gr
63N235 Sn63 Pb37 No Clean Solder Wire 2,30 mm 20 Piece 500 gr
63N072 Sn63 Pb37 No Clean Solder Wire 0,70 mm 40 Piece 200 gr
63N102 Sn63 Pb37 No Clean Solder Wire 1,00 mm 40 Piece 200 gr
63N122 Sn63 Pb37 No Clean Solder Wire 1,20 mm 40 Piece 200 gr
Box Packing Quantity
500 gr Spool Box Quantity: 20 Pieces / 10 kg
200 gr Spool Box Quantity: 40 Pieces / 8 kg
Your special orders are taken in the desired diameters in the range of 0.50 mm-6.00 mm.
