It is a type of flux-containing wire solder used worldwide for TV, electronics and consumer goods. It is produced with first class raw materials and the highest purity tin and lead alloys with 5 channels, containing flux at a nominal rate of 2% by weight in the channels. Flux can be applied at special rates upon order.
Usage areas:
It is used in general electrical and electronic applications.
RA ACTIVE RESIN
Standart DIN 8511 FSW 26
Halide content 0,5 % max.
The flux rate in the wire 2,5 % ± 0,5 %
Fragrance Light Resin
Fume Low
Pass copper mirror Pass
Corrosion test Pass
Chromate paper test Pass
Code Product Name Diameter Packaging

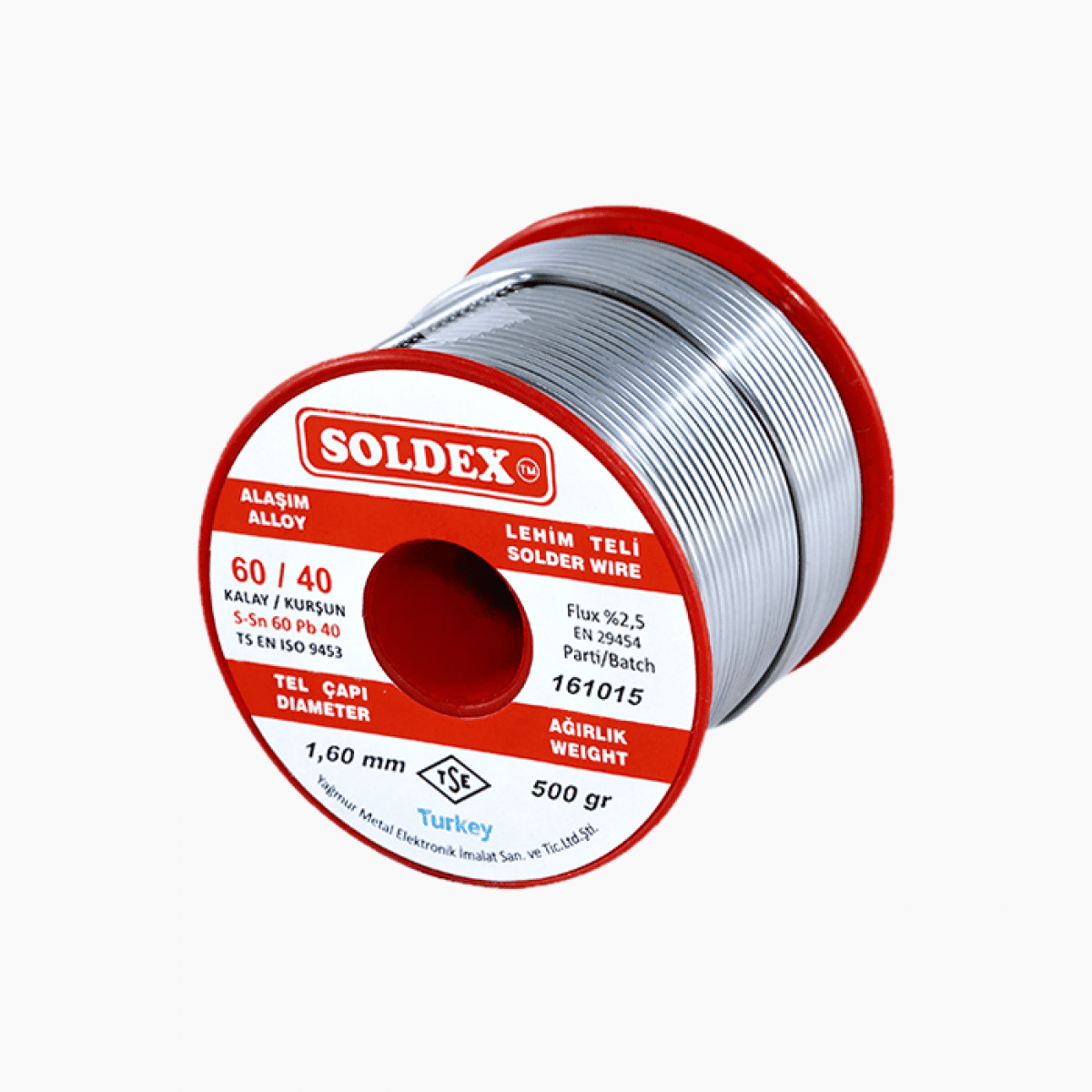

600505 Sn60 Pb40 Solder wire 0,50mm 500 gr
600755 Sn60 Pb40 Solder wire 0,75 mm 500 gr
601005 Sn60 Pb40 Solder wire 1,00 mm 500 gr
601205 Sn60 Pb40 Solder wire 1,20 mm 500 gr
601605 Sn60 Pb40 Solder wire 1,60 mm 500 gr
602005 Sn60 Pb40 Solder wire 2,00 mm 500 gr
603005 Sn60 Pb40 Solder wire 3,00 mm 500 gr
600432 Sn60 Pb40 Solder wire 0,43 mm 200 gr
600502 Sn60 Pb40 Solder wire 0,50 mm 200 gr
600752 Sn60 Pb40 Solder wire 0,75 mm 200 gr
601002 Sn60 Pb40 Solder wire 1,00 mm 200 gr
601202 Sn60 Pb40 Solder wire 1,20 mm 200 gr
601602 Sn60 Pb40 Solder wire 1,60 mm 200 gr
Box Packing Quantity
500 gr Spool Box Quantity: 20 Pieces / 10 kg
200 gr Spool Box Quantity: 40 Pieces / 8 kg
