It is a type of flux-containing wire solder used worldwide for TV, electronics and consumer goods. It is produced with first class raw materials and the highest purity tin and lead alloys with 5 channels, containing flux at a nominal rate of 2% by weight in the channels. Flux can be applied at special rates upon order.
Usage areas
It is used in general electrical and electronic applications.
RA ACTIVE RESIN
Standart DIN 8511 FSW 26
Halide content 0,5 % max.
The flux rate in the wire 2,5 % ± 0,5 %
Fragrance Light Resin
Fume Low
Pass copper mirror Pass
Corrosion test Pass
Chromate paper test Pass
Code Product Name Diameter Packaging

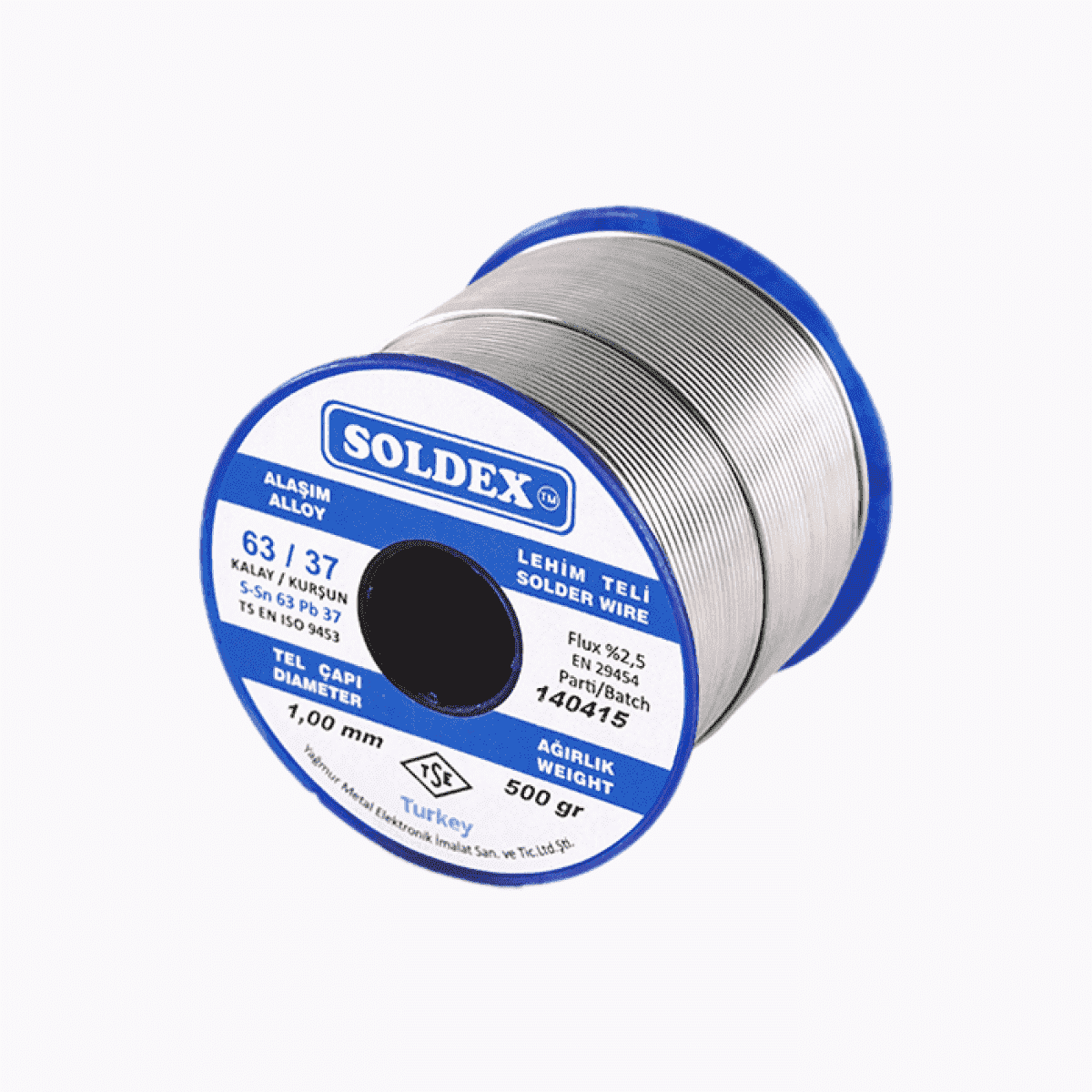

630755 Sn63 Pb37 Solder wire 0,75 mm 500 gr
631005 Sn63 Pb37 Solder wire 1,00 mm 500 gr
631205 Sn63 Pb37 Solder wire 1,20 mm 500 gr
631605 Sn63 Pb37 Solder wire 1,60 mm 500 gr
632005 Sn63 Pb37 Solder wire 2,00 mm 500 gr
630752 Sn63 Pb37 Solder wire 0,75 mm 200 gr
631002 Sn63 Pb37 Solder wire 1,00 mm 200 gr
631202 Sn63 Pb37 Solder wire 1,20 mm 200 gr
Box Packing Quantity
500 gr Spool Box Quantity: 20 Pieces / 10 kg
200 gr Spool Box Quantity: 40 Pieces / 8 kg
